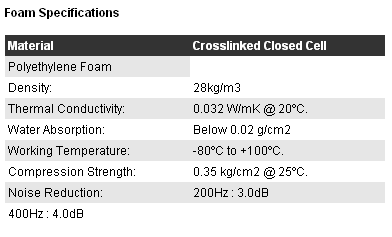

Crosslinked - Closed Cell - Polyethylene Foam - heat laminated to
reinforced 9um Aluminium Foil Facing.

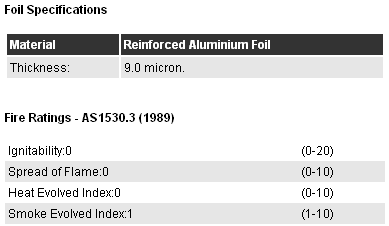

- Thermal Conductivity - Effective insulation against heat transfer, with a very low K value of 0.032 w/mK @ 20ºC Fire Hazard Rating - Meets the requirements of AS15530.3 for the Building Code of Australia Acoustical Properties - Reduces the transmission of noise and vibration Moisture Barrier - Closed cell structure is impervious to water and becomes the barrier in application Product Resistance - High resistance to detergents, dilute acids and alkalis, alcohols, ketones, exters and fungi Temperature Range - has a wide range of performance from -80ºC to 100ºC.
- Compression Effect - Crosslinked foam results in a light but very strong material that prevents deformation around duct corners and pin mountings ensuring consistent insulation performance.
Advantage to Applicators
- No Health Hazards - Does not emit dust or fibre particles Safe to Handle - Non-irritant with no special clothing requirements such as gloves or face masks Easy to Install - Light, flexible and easily cut and fabricated on site with a sharp knife Damage Resistant - Can be easily transported without costly damage problems.
- Optional Adhesive - Can be supplied with acrylic adhesive for quicker installation.
Advantage to End Users
- Energy Saving - An excellent thermal product reducing costs on both heating and cooling Noise Reducing - Reduces and deadens transmission of airborne and structural noise Health & Safety - Does not store or emit dust or fibre particles.
- Protective Transport - Cannot be easily torn and provide excellent impact resistance.
Estimated Measure of Heat Flow Reduction (U)
- FormShield achieves an excellent insulation against heat loss from its low thermal conductivity and its crosslinked cellular structure As an example, 10mm thick FormShield is a very cost effective product providing 90% heat flow reduction The ‘Law of Diminishing Returns’ as illustrated in the graph shows that an increase from 10-25mm FormShield provides only an additional 5% of insulation performance.
- Further thicknesses produce only a negligible increase in performance.
Heat Flow Reduction
Suggested Application Method
- Wrap FormShield around the duct work surface as tightly as possible Fasten in position with fixing pins at 400mm maximum centres. Ensure the FormShield is installed butt-jointed or overlapped Fabricate material to fit with a sharp knife All edges and joints should be sealed with a 75mm reinforced aluminium foil adhesive tape The figures and specifications within this literature are not standard but merely representative values from tests Ks3014, ASTM C-51, D3575, JISK6767, JIS-A1405 and AS1530.3-1989. The seller makes no warranties or recommendations as to the use of FormShield fora particular purpose
- Further data contained within are typical laboratory results only and do not represent a guarantee of performance in any application
